Highway Cuardrail

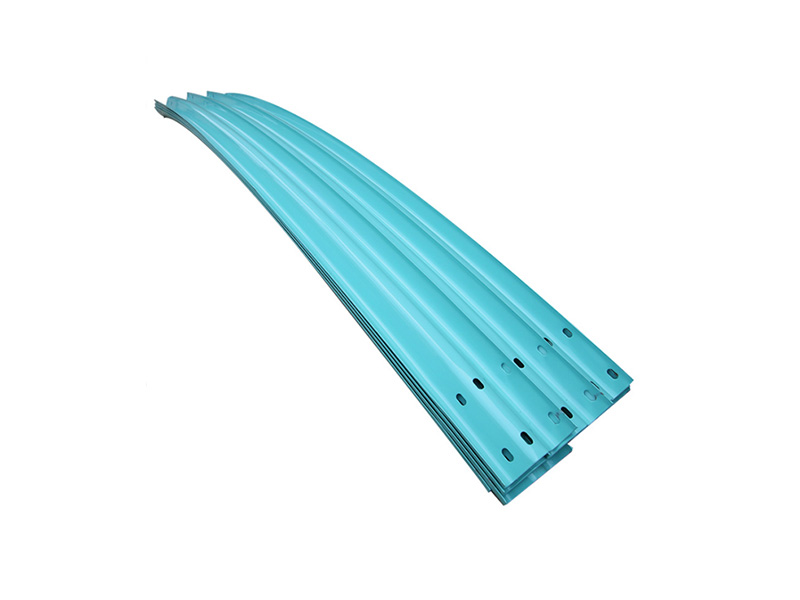

Customize Highway Curved Beam Guardrail
Radius/Curved Beam Highway Guardrail is a special road barrier giving a smooth transition on curves with a radius from 1.5m to 50m with curved shape. It concaves in various degrees for different roads application.
Always on time
Acceptable price
Excellent quality
Add to InquiryContact Us
Description
Parameters
| NO. | Property | Description |
| 1 | Brand/Origin Place | Safebuild/Shandong China |
| 2 | Product Name | Radius/Curved Beam Highway Guardrail |
| 3 | Material | Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. |
| 4 | Surface treatment | Hot dipped galvanized or powder coating |
| 5 | Zinc coating | 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized |
| 6 | Thickness | 2.5/2.75/3.0mm or customized |
| 7 | Standard Size | Customized |
| 8 | Certificate | AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV |
| 9 | Application | Curves transition |
Highway Guardrail Description
Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.
| Convex & Concave Curved Guardrail Panels | |
| Normal size of beam | L:2000/2300/3810/4000/4300/4320 Available in different sizes W:306/310/312/380 Height: 80/82/83/85 Thickness:2.75/3/4mm |
| Size of post | As standard or customized |
| Guardrail beam style | Convex, Concave Curved Guardrail |
| Surface treatment | Hot dipped galvanized or plastic sprayed coating |
| Guardrail standard | JT/T2811995/AASHTO M180/RAL RG620/AS NZS 3845-1999/EN1317 |
| Steel grade | Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. |
| Full side galvanized | 550 (80µ) / 610 (85µ) / 1100 (160µ) / 1200 g/m2 (170µ) or as per your request |
| Guardrail feature | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc. |
| Guardrail relevant parts | Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts &Nuts,Terminal,Reflectors. |
| MOQ | 1 meter |
| Price item | EXW,FOB,CIF,CFR,etc |
| Delivery | 10-25 working days |
| We accept ODM producing as client’s drawing. | |
