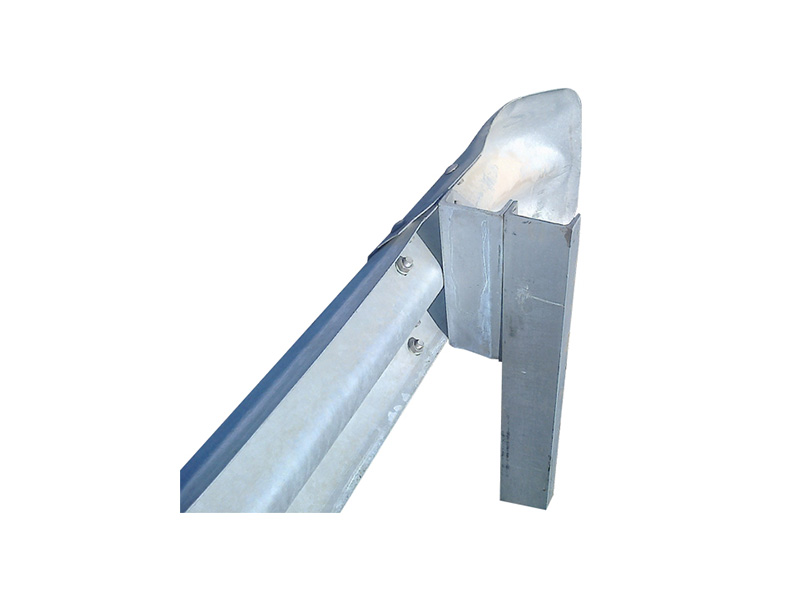

Galvanized UPN Channel Post
| NO. | Property | Description |
| 1 | Brand/Origin Place | Safebuild/Shandong China |
| 2 | Product Name | Highway Guardrail UPN Post |
| 3 | Material | Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. |
| 4 | Surface Treatment | Hot dipped galvanized or powder coating |
| 5 | Zinc Coating | 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized |
| 6 | Thickness | 5.0/6.0/7.0/8.0/9.0mm or customized |
| 7 | Standard Size | 120*55*7.0*9.0mm or customized |
| 8 | Certificate | AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV |
| 9 | Post Feature | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc |
Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.
As a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235B, Q345B and Q255B or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.The most popular types of guardrail posts are C Type, U Type, H(I BEAM) Type, Sigma Type, Square Colum(tubular)Type, Round Colum(tubular)Type and Z Type.
UPN120 Post is simply a guardrail plate post, it directly with channel steel profiles by cutting, punching, simple structure,short production process, ease of installation, low cost, the most important point is channel steel strength, high hardness, to play a supporting role, the guardrail can withstand scratches, collision accident vehicles, prevent pedestrians and vehicles out of the lateral.The channel steel is a long strip of steel with a groove shape and is a carbon structural steel for construction andmachinery.Channel steel is a section steel with a complex section. Its cross-sectional shape is a groove shape. Channel steel is mainly used in building structures, curtain wall engineering, machinery and vehicle manufacturing.Channel steel stud and channel steel spacer and guardrail, usually through bolts connected, this kind of combination, simple structure, convenient assembly, on the other side of the channel steel post by driver into the ground, play the role of supporting the guardrail, this post is usually used in Europe and the United States and other developed countries, it is composed of European standard UPN series channel steel after simple processing, low cost, strong commonality.
| U Channel(UPN) | ||||
| TYPE | Size(Depth * Flange Width)(mm) | Web thickness(mm) | Flange thickness(mm) | Weight(kg/m) |
| UPN80 | 80*45 | 6 | 8 | 8.64 |
| UPN100 | 100*50 | 6 | 8.5 | 10.6 |
| UPN120 | 120*55 | 7 | 9 | 13.4 |
| UPN140 | 140*60 | 7 | 10 | 16 |
| UPN160 | 160*65 | 7.5 | 10.5 | 18.8 |
| UPN180 | 180*70 | 8 | 11 | 22 |
| UPN200 | 200*75 | 8.5 | 11.5 | 25.3 |
| Other specifications can be customized | ||||
| Highway Guardrail System Parts List Per 1KM | |||
| Product
Name |
Size (L * W * WH*T) |
Post spacing: 4 m Quantity per KM |
Post spacing: 2 m Quantity per KM |
| Guardrail Beam | W Beam
4320*310*83*2.75mm |
250 | 250 |
| Post | UPN Post
1800*120*55*7*9mm |
251 | 501 |
| Spacer Block | UPN Spacer
350*120*55*7*9mm |
251 | 501 |
| Washer | 75*44*4mm | 251 | 501 |
| Reflector | 50*70*120*1.5mm | 250 | 250 |
| Terminal End | Fishtail End
700*460*2.75mm |
2 | 2 |
| Bolts & Nuts | M16*35mm | 2000 | 2000 |
| Bolts & Nuts | M16*40mm | 502 | 1002 |
| Bolts & Nuts | M16*50mm | 251 | 501 |
| Highway Guardrail Post | |
| Steel Post Shape | U/C/H/Z/UPN/Flange/Square/Round/Sigma Post or Customized |
| U Shape Post Size | 100*55*4.0,125*62.5*5.0,150*75*5.0,150*100*5.0,178*76*5.5/ 6.0mm,etc |
| C Shape Post Size | 100*50*25*5.0,120*55*16*4.0,125*55*18*5.0,125*62.5*25*5.0, 150*75*25*4.75,150*100*25*5.0mm,etc |
| H Shape Post Size | 150*100*4.3*5.5,100*100*6.0*8.0mm |
| Z Shape Post Size | 90*50*25*4.0,65*75*50*10mm |
| UPN120 Post Size | 120*55*7.0*9.0mm |
| Flange Post Size | As the shape of the post |
| Square Post Size | 130*130*6.0mm |
| Round Post Size | Φ114*4.5,Φ140*4.5mm |
| Sigma Post Size | 100*55*16*4.0mm |
| All above the post length:1200/1500/1850/1950/2000/2150/2200/2500mm | |
| All size and thickness can be customized | |
| Steel Material | Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M |
| Post Standards | JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317 |
| Surface treatment | Hot-dip galvanized and galvanized plastic spraying coating |
| Zinc Coating | 300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized |
| Post Feature | Great corrosion resistant, high intensity, long and durable, with
good impact resistance, low cost, long life, higher security, environmental protection, etc |
