GuardrailAccessories

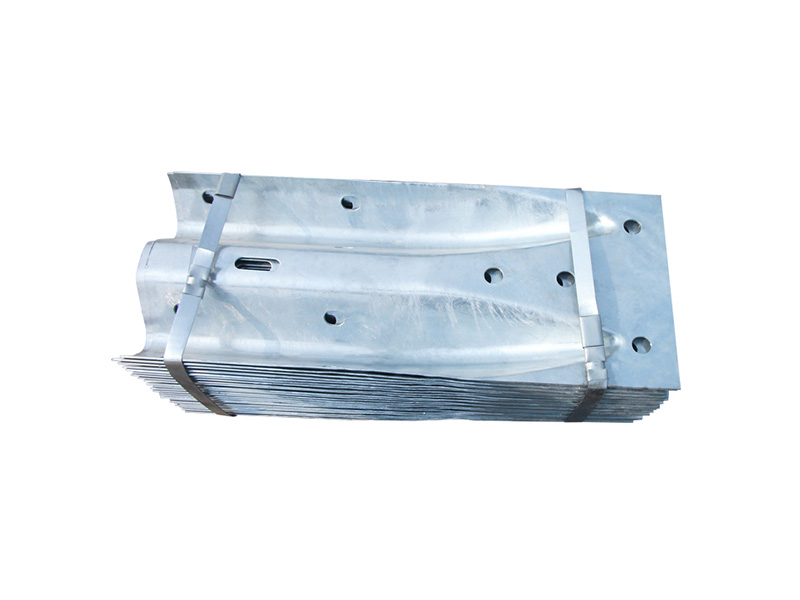

Highway Guardrail Bridge Terminal End

Bridge End are mounted on road bends or median strips. This product is simple and easy to assemble, and through the surface hot galvanized processing it as gained a strong anti-corrosion ability.
Always on time
Always on time
Acceptable price
Acceptable price
Excellent quality
Excellent quality
Add to InquiryContact Us
Description
Parameters
NO. Property Description
1 Brand/Origin Place Safebuild/Shandong China
2 Product Name  Highway Guardrail Bridge Terminal End
3 Material Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4 Surface Treatment Hot dipped galvanized or powder coating
5 Zinc Coating 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6 Thickness 2.75/2.85/3.85/4.0mm or customized
7 Standard Size Customized according to the shape of end
8 Certificate AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9 Post Feature For the end of the section of the road, and for the protection and aesthetic effect of the end of the fence panels guardrail
Guardrail Accessories Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

Highway Guardrail Terminal End are the specially designed end pieces of a road safety barrier system. The leading terminal is on the end of the road safety barrier system that faces oncoming traffic and the trailing terminal is on the other end. Guardrail end terminals are designed to provide a soft gating impact to prevent the end rail from spearing an impacting vehicle. Terminals also introduce tensile and flexural strength necessary to ensure redirection performance of the length-of-need section. Because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types: Fishtail End,Buffer End,Bullnose End,Anchor End,Bridge End,SKT End, etc.

Bridge End are mounted on road bends or median strips. The roadway guardrail terminal end are installed at the end of each part of crash barrier system with the aim to prevent damage and harm to pedestrians and vehicles when vehicles become errant and crash at the end of guardrails. This product is simple and easy to assemble, and through the surface hot galvanized processing it undergoes it as gained a strong anti-corrosion ability, it can play a guiding role to the cars on the road, it reduces the effect of collisions and it effectively prevents the vehicle from leaving the road.

Highway Guardrail System Parts List Per 1KM
Product

Name

Size
(L * W * WH*T)
Post spacing: 4 m
Quantity per KM
Post spacing: 2 m
Quantity per KM
Guardrail Beam W Beam

4320*310*83*2.75mm

250 250
Post U Post

1820*150*75*5mm

251 501
Spacer Block U Spacer

350*150*75*5mm

251 501
Washer 75*44*4mm 251 501
Reflector 50*70*120*1.5mm 250 250
Terminal End  Bridge End 2 2
Bolts & Nuts M16*35mm 2000 2000
Bolts & Nuts M16*40mm 502 1002
Bolts & Nuts M16*50mm 251 501
Highway Guardrail Terminal End
Guardrail End Shape Fishtail,Buffer,Bullnose,Anchor,Bridge,SKT Terminal End
Color Silver (Other Colors Available Like Blue, Green)
Thickness 2.75mm,2.85mm,3.85mm,4mm or Customized
Steel Material Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M
End Standards JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317
Surface treatment Hot-dip galvanized and galvanized plastic spraying coating
Zinc Coating 300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized
Post Feature Great Corrosion Resistant, High Intensity, Durable
