Guardrail Post

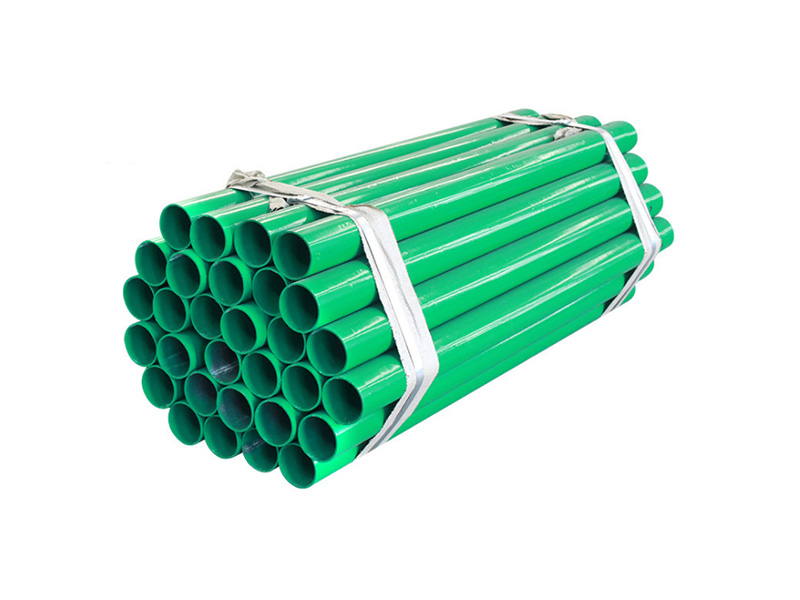

Highway Guardrail Round Type Post

Round post is the most common kind of highway guardrail post. It is made of steel pipe through cutting,punching and surface treatment.
Always on time
Always on time
Acceptable price
Acceptable price
Excellent quality
Excellent quality
Add to InquiryContact Us
Description
Parameters
NO. Property Description
1 Brand/Origin Place Safebuild/Shandong China
2 Product Name  Highway Guardrail Round Post
3 Material Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4 Surface Treatment Hot dipped galvanized or powder coating
5 Zinc Coating 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6 Thickness 4.0/5.0/6.0mm or customized
7 Standard Size Φ114*4.5,Φ140*4.5mm or customized
8 Certificate AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9 Post Feature Great corrosion resistant, high intensity, long and durable, with
good impact resistance, low cost, long life, higher security, environmental protection, etc
Guardrail Post Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

As a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235B, Q345B and Q255B or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.The most popular types of guardrail posts are C Type, U Type, H(I BEAM) Type, Sigma Type, Square Colum(tubular)Type, Round Colum(tubular)Type and Z Type.

Round post is the most common kind of highway guardrail post. It is made of steel pipe through cutting,punching and surface treatment. It has the advantages of simple production process, low cost and convenient maintenance and replacement.One end of the Round post is connected to the guardrail plate by bolts, nuts and connectors, and the other end is embedded in the earth or fastened to the road surface by flannel, thus playing a supporting role and effectively preventing vehicles or pedestrians from rushing out.

The surface of Round post is generally treated by hot-dip galvanizing process.This surface treatment method can effectively prevent corrosion, withstand high temperature and have a long life. Meanwhile, its appearance is simple and easy to assemble and replace accessories.

Highway Guardrail System Parts List Per 1KM
Product Name Size(L * W * WH*T) Post spacing: 4 m Quantity per KM Post spacing: 2 m Quantity per KM
Guardrail beam W Beam 4320*310*83*2.75mm 250 250
Post Round Post 2150*140*4.5mm 251 501
Spacer Block Block 178*196*200*4.5mm 251 501
Post Cap Φ140mm 251 501
Washer 75*44*4mm 251 501
Reflector 50*70*120*1.5mm 250 250
Terminal End Fishtail End 700*460*2.75mm 2 2
Bolts & Nuts M16*35mm 2000 2000
Bolts & Nuts M16*40mm 251 501
Bolts & Nuts M16*50mm 251 501
Highway Guardrail Post
Steel Post Shape U/C/H/Z/UPN/Flange/Square/Round/Sigma Post or Customized
U Shape Post Size 100*55*4.0,125*62.5*5.0,150*75*5.0,150*100*5.0,178*76*5.5/ 6.0mm,etc
C Shape Post Size 100*50*25*5.0,120*55*16*4.0,125*55*18*5.0,125*62.5*25*5.0, 150*75*25*4.75,150*100*25*5.0mm,etc
H Shape Post Size 150*100*4.3*5.5,100*100*6.0*8.0mm
Z Shape Post Size 90*50*25*4.0,65*75*50*10mm
UPN120 Post Size 120*55*7.0*9.0mm
Flange Post Size As the shape of the post
Square Post Size 130*130*6.0mm
Round Post Size Φ114*4.5,Φ140*4.5mm
Sigma Post Size 100*55*16*4.0mm
All above the post length:1200/1500/1850/1950/2000/2150/2200/2500mm
All size and thickness can be customized
Steel Material Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M
Post Standards JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317
Surface treatment Hot-dip galvanized and galvanized plastic spraying coating
Zinc Coating 300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized
Post Feature Great corrosion resistant, high intensity, long and durable, with

good impact resistance, low cost, long life, higher security, environmental protection, etc
