Highway Guardrail Sigma Type Post

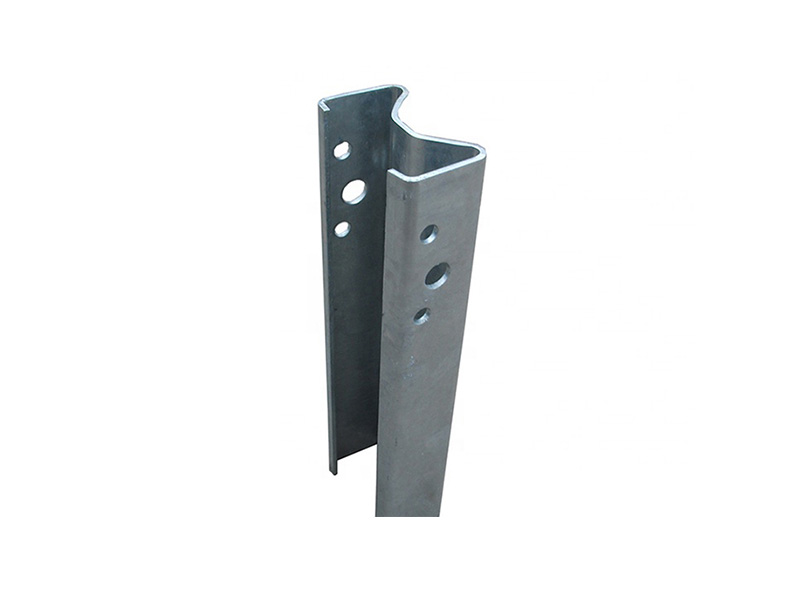

Sigma post is commonly used abroad, it is composed of steel strip cold rolling forming which shape like the Greek letter “Σ”.
Always on time
Always on time
Acceptable price
Acceptable price
Excellent quality
Excellent quality
Add to InquiryContact Us
Description
Parameters
NO. Property Description
1 Brand/Origin Place Safebuild/Shandong China
2 Product Name  Highway Guardrail Sigma Post
3 Material Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4 Surface Treatment Hot dipped galvanized or powder coating
5 Zinc Coating 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6 Thickness 4.0/5.0/6.0/7.0/8.0/9.0/10mm or customized
7 Standard Size 100*55*16*4.0mm or customized
8 Certificate AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9 Post Feature Great corrosion resistant, high intensity, long and durable, with
good impact resistance, low cost, long life, higher security, environmental protection, etc
Guardrail Post Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

As a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235B, Q345B and Q255B or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.The most popular types of guardrail posts are C Type, U Type, H(I BEAM) Type, Sigma Type, Square Colum(tubular)Type, Round Colum(tubular)Type and Z Type.

Sigma post is commonly used abroad, it is composed of steel strip cold rolling forming, due to the shape like the Greek letter “Σ”, the so called sigma post.Sigma post than U /C post, material ductility is stronger, the support area is larger, higher strength, it is mainly connected with special-shaped block, have the effect of holding the guardrail components, to prevent the vehicles and pedestrians out, it is suitable for the relatively narrow roads or corner, can effectively ensure the safety of the pedestrians and vehicles on the road, to prevent accidents.

Highway Guardrail System Parts List Per 1KM
Product

Name

Size
(L * W * WH*T)
Post spacing: 4 m
Quantity per KM
Post spacing: 2 m
Quantity per KM
Guardrail Beam W Beam

4320*310*83*2.75mm

250 250
Post Sigma Post

1800*100*55*5mm

251 501
Spacer Block 200*55*5mm 251 501
Washer 75*44*4mm 251 501
Reflector 50*70*120*1.5mm 250 250
Terminal End Fishtail End

700*460*2.75mm

2 2
Bolts & Nuts M16*35mm 2000 2000
Bolts & Nuts M16*45mm 502 1002
Bolts & Nuts M16*50mm 251 501
Highway Guardrail Post
Steel Post Shape U/C/H/Z/UPN/Flange/Square/Round/Sigma Post or Customized
U Shape Post Size 100*55*4.0,125*62.5*5.0,150*75*5.0,150*100*5.0,178*76*5.5/ 6.0mm,etc
C Shape Post Size 100*50*25*5.0,120*55*16*4.0,125*55*18*5.0,125*62.5*25*5.0, 150*75*25*4.75,150*100*25*5.0mm,etc
H Shape Post Size 150*100*4.3*5.5,100*100*6.0*8.0mm
Z Shape Post Size 90*50*25*4.0,65*75*50*10mm
UPN120 Post Size 120*55*7.0*9.0mm
Flange Post Size As the shape of the post
Square Post Size 130*130*6.0mm
Round Post Size Φ114*4.5,Φ140*4.5mm
Sigma Post Size 100*55*16*4.0mm
All above the post length:1200/1500/1850/1950/2000/2150/2200/2500mm
All size and thickness can be customized
Steel Material Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M
Post Standards JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317
Surface treatment Hot-dip galvanized and galvanized plastic spraying coating
Zinc Coating 300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized
Post Feature Great corrosion resistant, high intensity, long and durable, with

good impact resistance, low cost, long life, higher security, environmental protection, etc
