Highway Guardrail Steel UPN Post

UPN120 Post is simply a guardrail plate post which play a supporting role. The guardrail can withstand scratches, collision accident vehicles, prevent pedestrians and vehicles out of the lateral.
Always on time
Always on time
Acceptable price
Acceptable price
Excellent quality
Excellent quality
Add to InquiryContact Us
Description
Parameters
NO. Property Description
1 Brand/Origin Place Safebuild/Shandong China
2 Product Name  Highway Guardrail UPN Post
3 Material Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4 Surface Treatment Hot dipped galvanized or powder coating
5 Zinc Coating 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6 Thickness 5.0/6.0/7.0/8.0/9.0mm or customized
7 Standard Size 120*55*7.0*9.0mm or customized
8 Certificate AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9 Post Feature Great corrosion resistant, high intensity, long and durable, with
good impact resistance, low cost, long life, higher security, environmental protection, etc
Guardrail Post Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

As a holder of highway guardrails, generally determines the barrier’s performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235B, Q345B and Q255B or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.The most popular types of guardrail posts are C Type, U Type, H(I BEAM) Type, Sigma Type, Square Colum(tubular)Type, Round Colum(tubular)Type and Z Type.

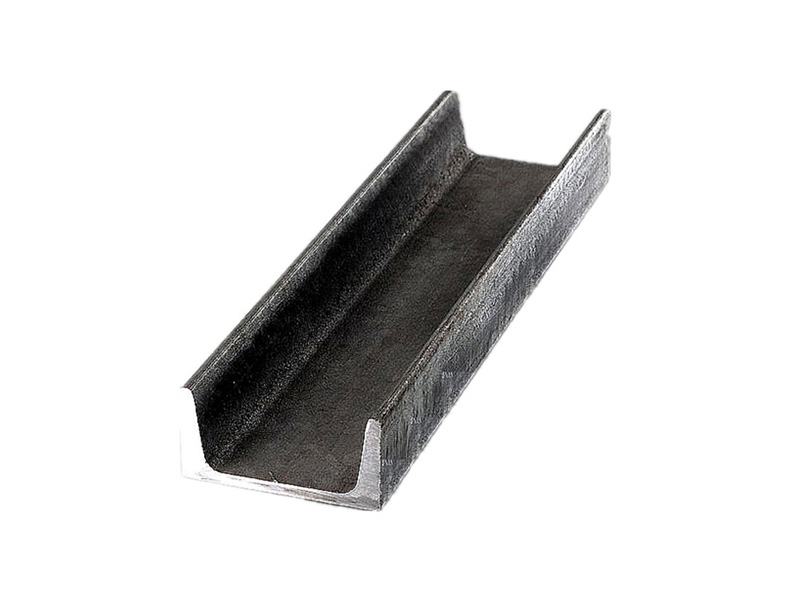

UPN120 Post is simply a guardrail plate post, it directly with channel steel profiles by cutting, punching, simple structure,short production process, ease of installation, low cost, the most important point is channel steel strength, high hardness, to play a supporting role, the guardrail can withstand scratches, collision accident vehicles, prevent pedestrians and vehicles out of the lateral.The channel steel is a long strip of steel with a groove shape and is a carbon structural steel for construction andmachinery.Channel steel is a section steel with a complex section. Its cross-sectional shape is a groove shape. Channel steel is mainly used in building structures, curtain wall engineering, machinery and vehicle manufacturing.Channel steel stud and channel steel spacer and guardrail, usually through bolts connected, this kind of combination, simple structure, convenient assembly, on the other side of the channel steel post by driver into the ground, play the role of supporting the guardrail, this post is usually used in Europe and the United States and other developed countries, it is composed of European standard UPN series channel steel after simple processing, low cost, strong commonality.

U Channel(UPN)
TYPE Size(Depth * Flange Width)(mm) Web thickness(mm) Flange thickness(mm) Weight(kg/m)
UPN80 80*45 6 8 8.64
UPN100 100*50 6 8.5 10.6
UPN120 120*55 7 9 13.4
UPN140 140*60 7 10 16
UPN160 160*65 7.5 10.5 18.8
UPN180 180*70 8 11 22
UPN200 200*75 8.5 11.5 25.3
Other specifications can be customized
Highway Guardrail System Parts List Per 1KM
Product

Name

Size
(L * W * WH*T)
Post spacing: 4 m
Quantity per KM
Post spacing: 2 m
Quantity per KM
Guardrail Beam W Beam

4320*310*83*2.75mm

250 250
Post UPN Post

1800*120*55*7*9mm

251 501
Spacer Block UPN Spacer

350*120*55*7*9mm

251 501
Washer 75*44*4mm 251 501
Reflector 50*70*120*1.5mm 250 250
Terminal End Fishtail End

700*460*2.75mm

2 2
Bolts & Nuts M16*35mm 2000 2000
Bolts & Nuts M16*40mm 502 1002
Bolts & Nuts M16*50mm 251 501
Highway Guardrail Post
Steel Post Shape U/C/H/Z/UPN/Flange/Square/Round/Sigma Post or Customized
U Shape Post Size 100*55*4.0,125*62.5*5.0,150*75*5.0,150*100*5.0,178*76*5.5/ 6.0mm,etc
C Shape Post Size 100*50*25*5.0,120*55*16*4.0,125*55*18*5.0,125*62.5*25*5.0, 150*75*25*4.75,150*100*25*5.0mm,etc
H Shape Post Size 150*100*4.3*5.5,100*100*6.0*8.0mm
Z Shape Post Size 90*50*25*4.0,65*75*50*10mm
UPN120 Post Size 120*55*7.0*9.0mm
Flange Post Size As the shape of the post
Square Post Size 130*130*6.0mm
Round Post Size Φ114*4.5,Φ140*4.5mm
Sigma Post Size 100*55*16*4.0mm
All above the post length:1200/1500/1850/1950/2000/2150/2200/2500mm
All size and thickness can be customized
Steel Material Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M
Post Standards JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317
Surface treatment Hot-dip galvanized and galvanized plastic spraying coating
Zinc Coating 300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized
Post Feature Great corrosion resistant, high intensity, long and durable, with

good impact resistance, low cost, long life, higher security, environmental protection, etc
