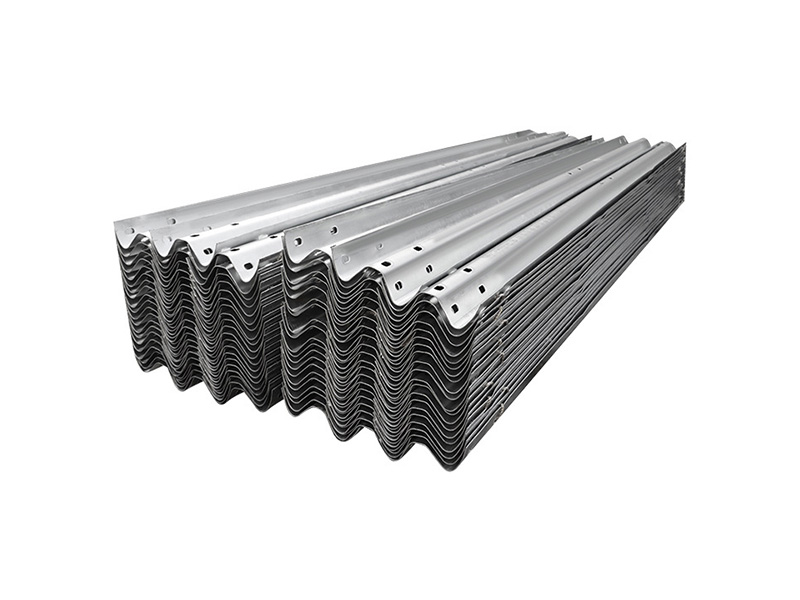

Q235B Q345B Steel Beam Guardrail - Image 1
Click to enlarge
Highway Cuardrail

Q235B Q345B Steel Beam Guardrail

W beam galvanized guardrail is the most common highway crash barriers designed to prevent the vehicle from running out of the road in high-speed area. It is a very cost-effective road safety guardrail.
Always on time
Always on time
Acceptable price
Acceptable price
Excellent quality
Excellent quality
Add to InquiryContact Us
Description
Parameters
NO. Property Description
1 Brand/Origin Place Safebuild/Shandong China
2 Product Name W Beam Highway Guardrail
3 Material Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4 Surface treatment Hot dipped galvanized or powder coating
5 Zinc coating 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6 Thickness 2.75/3.0/4.0mm or customized
7 Standard Size 4130*310*81*2.5/2.75/3.0mm, 4320*310*85*2.5/2.75/3.0mm or customized
8 Certificate AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9 Application Highway,dangerous area road safety
Highway Guardrail Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

W Beam Guardrail Per AASHTO M180
Product Size(L * W * WH*T) Post spacing: 4 m
Quantity per KM		 Post spacing: 2 m
Quantity per KM		 Coating Treatment
Guardrail beam W Beam

4320*310*83*2.75mm

 250 250



Hot Dip Galvanized:

550g/㎡-1100g/㎡

Powder spraying:

Pre-Galvanized + Powder spraying
Post U Post

1820*150*75*5mm

 251 501
Spacer Block U Spacer

350*150*75*5mm

 251 501
Washer 75*44*4mm 251 501
Reflector 50*70*120*1.5mm 250 250
Terminal End Fishtail End

700*460*2.75mm

 2 pcs 2 pcs
Bolts & Nuts M16*35mm 2000 2000
Bolts & Nuts M16*40mm 502 1002
Bolts & Nuts M16*50mm 251 501








Notes

       1.Shape:Two waves, W-beam.
2.Normal Specification: Available in different sizes.

L:2000/2300/3810/4000/4300/4320

W:306/310/312/380
Height:80/82/83/85

Thickness:2.75/3/4mm

3.Guardrail Standards:JT/T2811995/AASHTO M180/RAL RG620/AS NZS 3845-1999/EN1317.

4.Steel Material: Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
5.Surface treatment: hot-dip galvanized and galvanized plastic spraying coating.
6.Guardrail relevant parts:Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts &Nuts,Terminal,Reflectors.
7.We accept ODM producing as client’s drawing.

8.Guardrail feature:Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher

security, environmental protection, etc.
