Highway Cuardrail

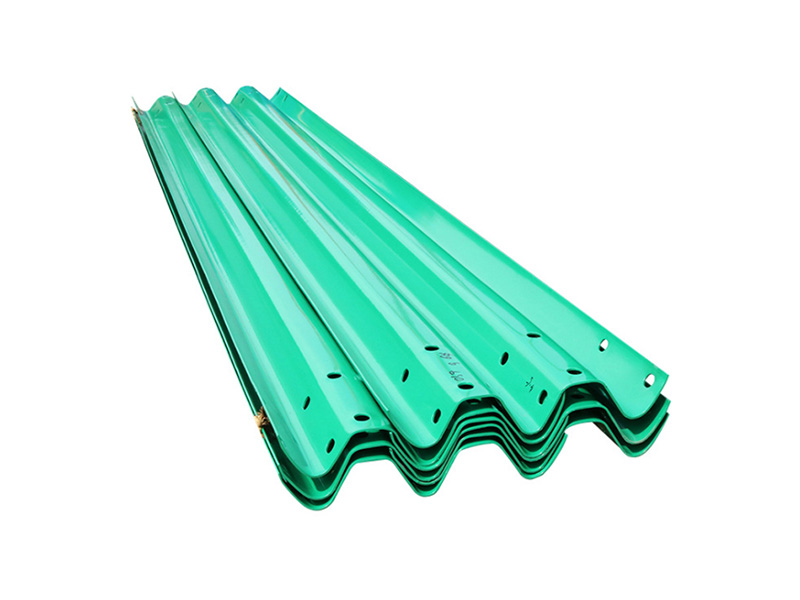

Road Safety three Beam Highway Guardrail

Thrie beam galvanized steel guardrail is a conventional highway crash barrier designed to prevent the vehicle from running out of the road in dangerous area. Compared to w guardrail, thrie beam guardrail has better anti-collision performance, which is widely applied in dangerous road such as bridge.
Always on time
Always on time
Acceptable price
Acceptable price
Excellent quality
Excellent quality
Add to InquiryContact Us
Description
Parameters
NO. Property Description
1 Brand/Origin Place Safebuild/Shandong China
2 Product Name Thrie Beam Highway Guardrail
3 Material Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4 Surface treatment Hot dipped galvanized or powder coating
5 Zinc coating 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6 Thickness 2.75/3.0/4.0mm or customized
7 Standard Size 4130*506*85*2.75/3.0/3.5/4.0mm, 4320*506*85*2.75/3.0/3.5/4.0mm or customized
8 Certificate AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9 Application Highway,Bridge and other dangerous area road safety
Highway Guardrail Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

Thrie Beam Guardrail Per 1KM AASHTO M180
Product Name Size(L * W * WH*T) Post spacing: 4 m
Quantity per KM		 Post spacing: 2 m
Quantity per KM		 Coating Treatment
Guardrail beam Thrie Beam 4320*506*83*2.75mm 250 250



Hot Dip Galvanized:

550g/㎡-1100g/㎡

Powder spraying:

Pre-Galvanized + Powder spraying
Steel Post U Post(example) 1820*150*100*5mm 251 501
Spacer Block U Spacer(example) 560*150*100*5mm 251 501
Washer 75*44*4mm 251 501
Reflector 50*70*120*1.5mm 250 250
Terminal End Fishtail End 700*506*2.75mm 2 2
Bolts & Nuts M16*35mm 2000 2000
Bolts & Nuts M16*40mm 502 1002
Bolts & Nuts M16*50mm 251 501








Notes

       1.Shape:Three waves, Thrie-beam.
2.Normal Specification: Available in different sizes.

L:2000/2300/3810/4000/4300/4320

W:506/508/510
Height:80/82/83/85

Thickness:2.75/3/4mm

3.Guardrail Standards:JT/T2811995/AASHTO M180/RAL RG620/AS NZS 3845-1999/EN1317.

4.Steel Material: Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
5.Surface treatment: hot-dip galvanized and galvanized plastic spraying coating.
6.Guardrail relevant parts:Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts &Nuts,Terminal,Reflectors.
7.We accept ODM producing as client’s drawing.

8.Guardrail feature:Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher

security, environmental protection, etc.
